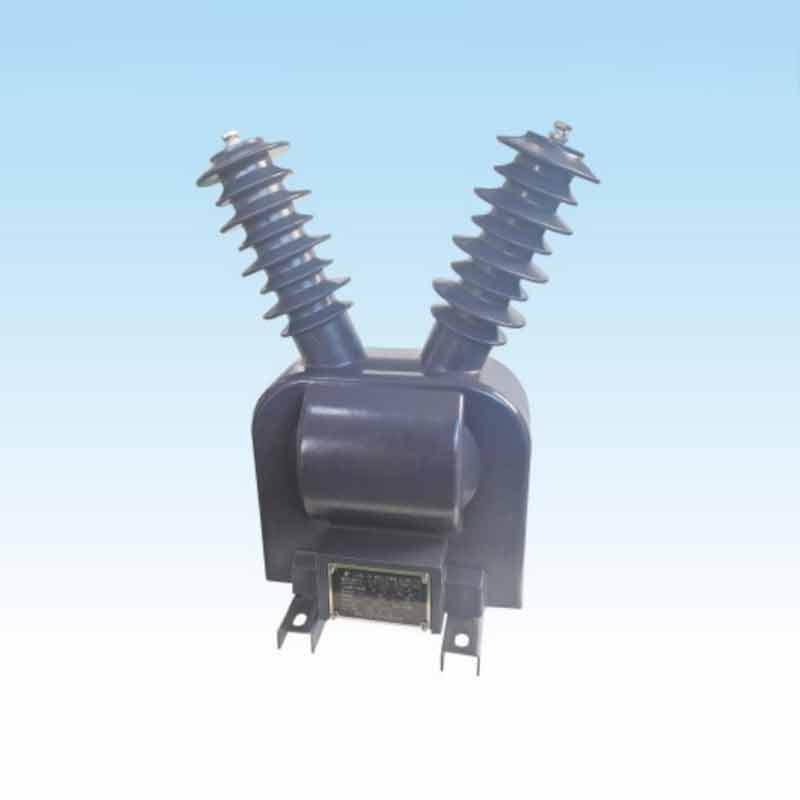

11 kV Outdoor Voltage Transformer
CHENGHE Electric is a professional leader China 11 Kv Outdoor Voltage Transformer manufacturer with high quality and reasonable price. Welcome to contact us.
Description
Product Description
CHENGHE Electric is a professional leader China 11 Kv Outdoor Voltage Transformer manufacturer with high quality and reasonable price. Welcome to contact us.
Type description
Technical data
| Type | Rated voltage ratio
(V) |
Accuracy class and ratedsecondary output(VA) | Max,output
(VA) |
Ratedinsulation
level(kV) |
||||||
| 0.2 | 0.5 | 1级 | 3级 | 0.2/02 0.2/0.5 | 0.5/0.5 | 6P | ||||
| JDZW3-3R | 3000/100 | 30 | 50 | 100 | 200 | / | / | / | 500 | 3.6/25/40 |
| JDZW3-6R | 6000/100 | 7.2/32/60 | ||||||||
| JDZW3-10R | 10000/100 | 12/42/75 | ||||||||
| 10000/220 | ||||||||||
| 10000/100/100 | / | / | / | / | 15/1515/20 | 30/30 | / | 300/300 | ||
| 10000/100/220 | / | / | / | / | 0.2/3-25/500 | / | 300/500 | |||
| 0.5/3-50/500 | ||||||||||
Overall dimension drawing
